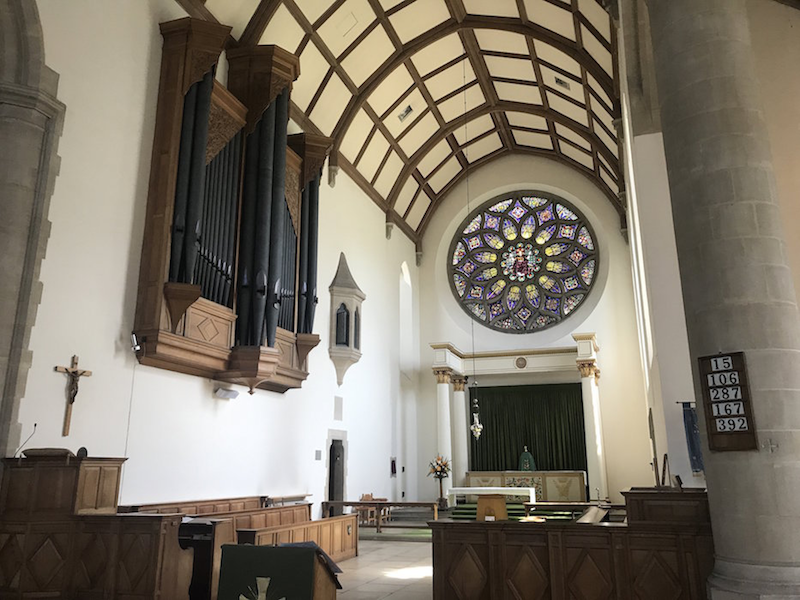

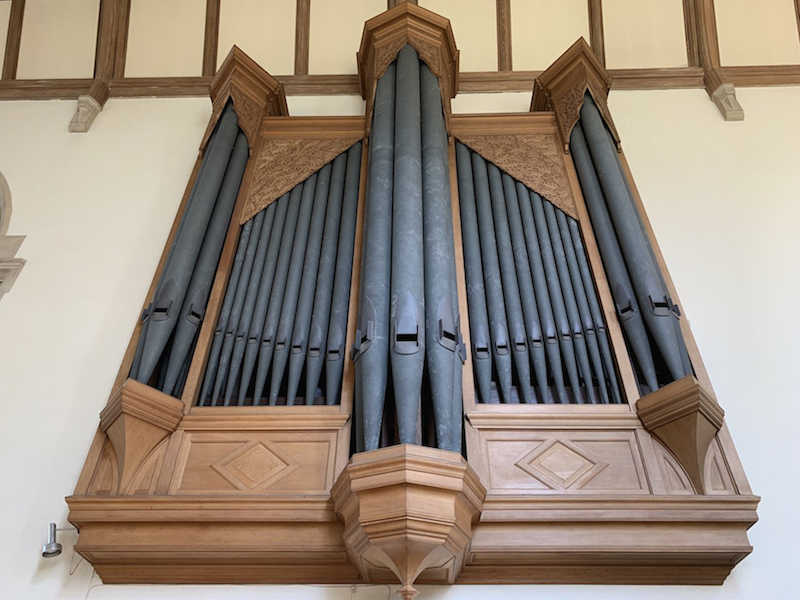

This Willis Pitman Action organ at All Saint's was built in 1937 and had remained virtually unchanged since that time. The console, wiring and switching system was failing and, in 2019, Henry Willis & Sons completely refurbished and upgraded the console, re-wired the instrument and provided it with a modern solid state switching system. The specification was enlarged by adding a Great 8' Flute, 16' Pedal Trombone and a Great 8' Tromba. The 16' Contra Oboe was also made available at 8 foot pitch.

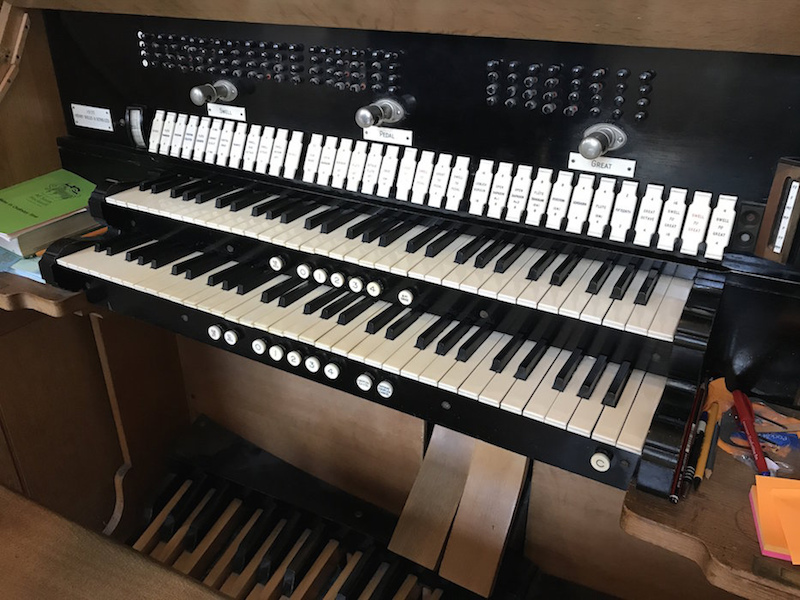

The Console had become unreliable and worn
The Console switchgear & wiring
is over eighty years old

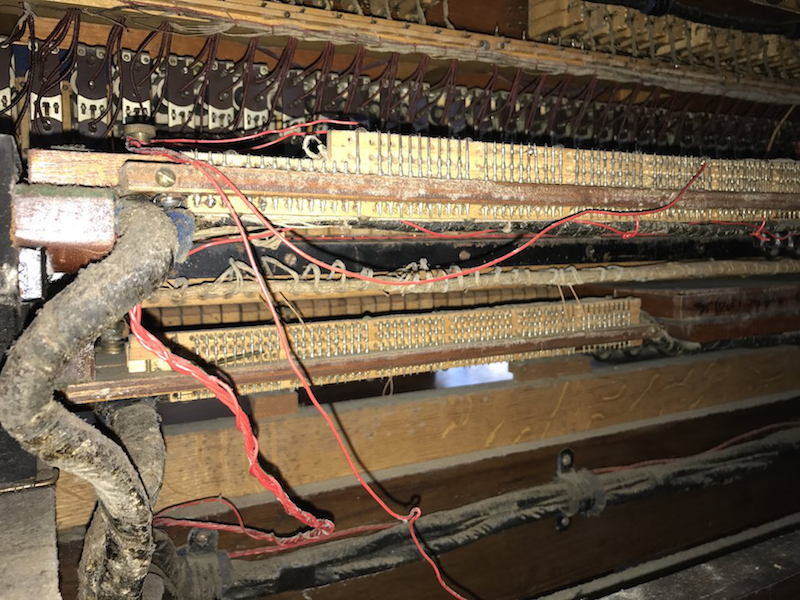

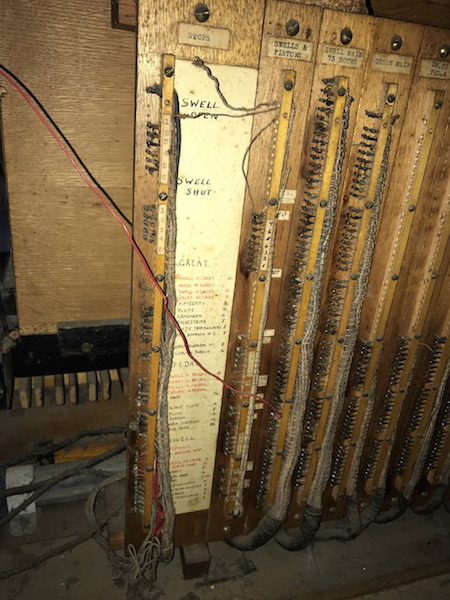

1937 Pinboards and original cotton-covered wiring

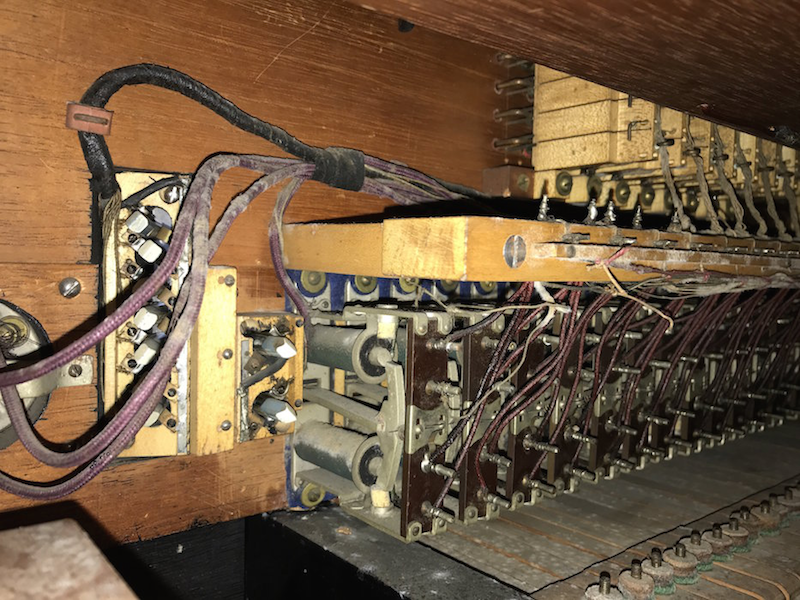

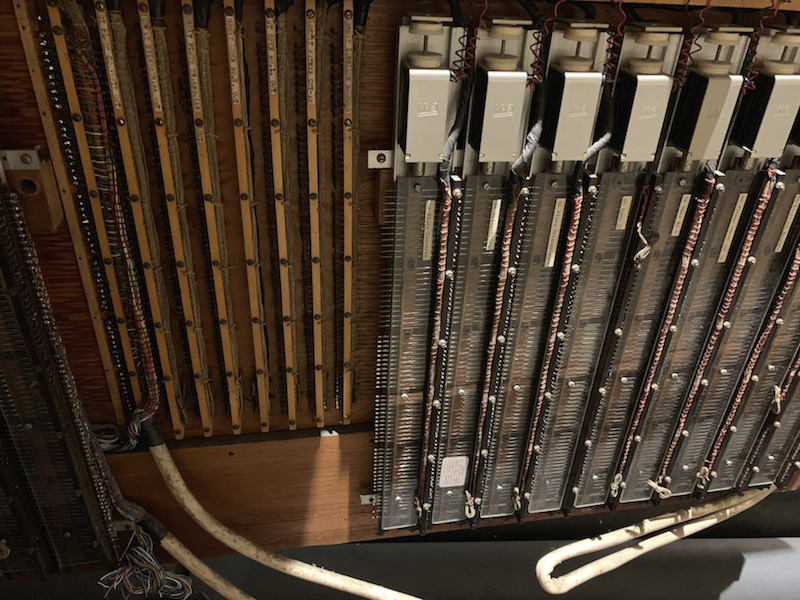

In the 1980s, the Skinner Switches were replaced
with electro-mechanical ladder switches.
The wiring from the Console to the chamber
is still original 1930s material

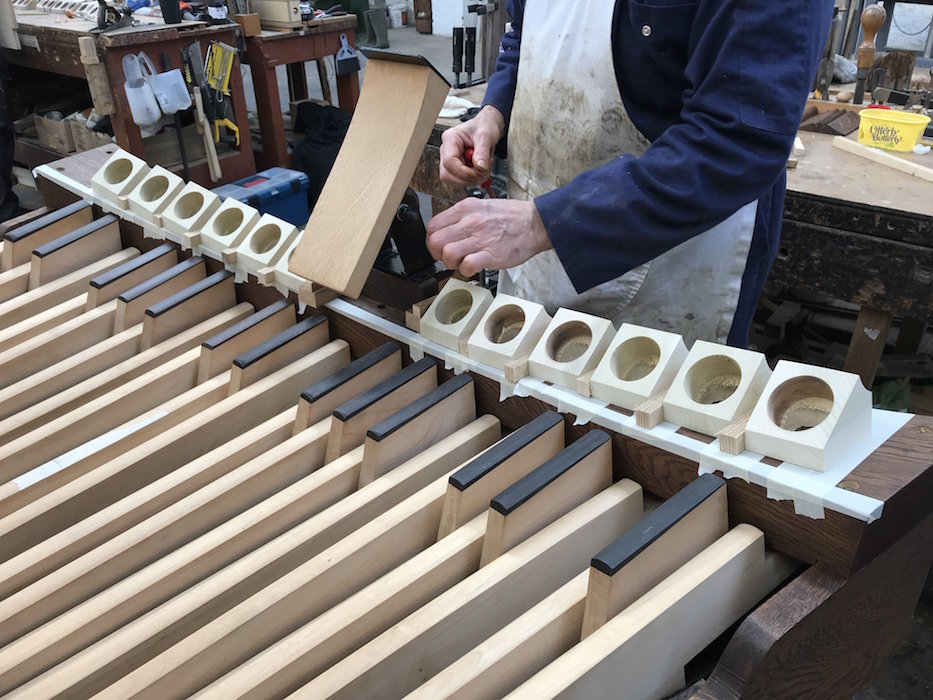

The Console is stripped down, the Pedals are
re-pieced and new Willis Toe Pistons are added

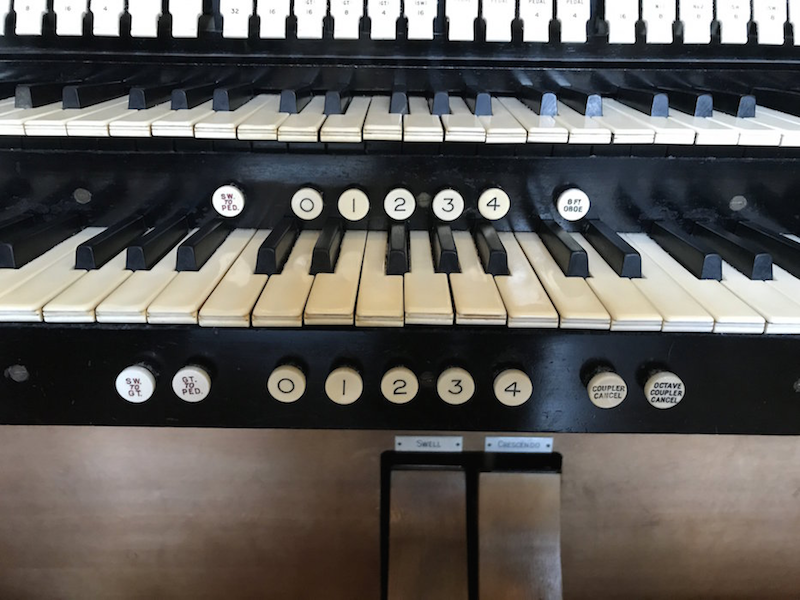

The Console is re-assembled with added Drawstops & Pistons

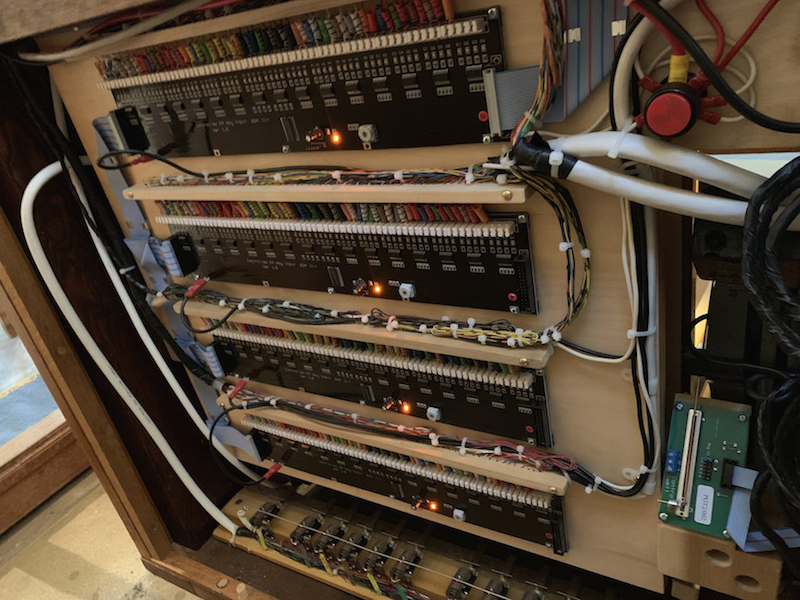

The Tablet Units are restored and re-wired to a modern solid state capture system
On test in the factory

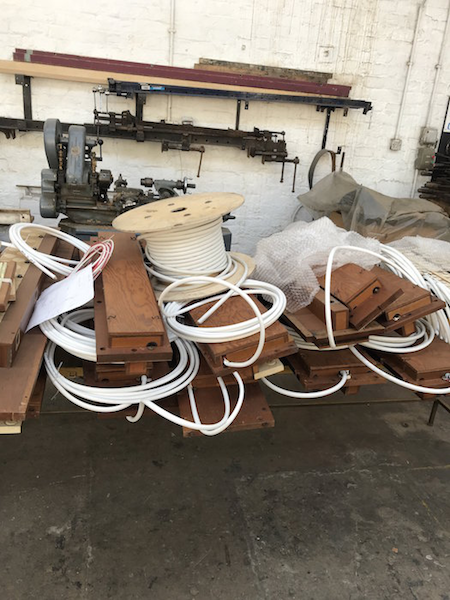

The Actions have been re-wired ready to be returned to the organ

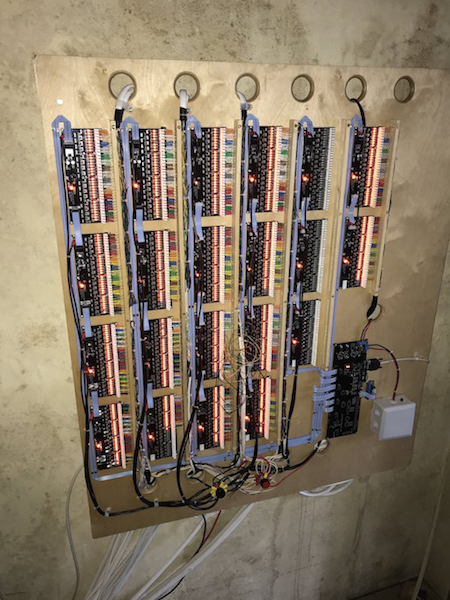

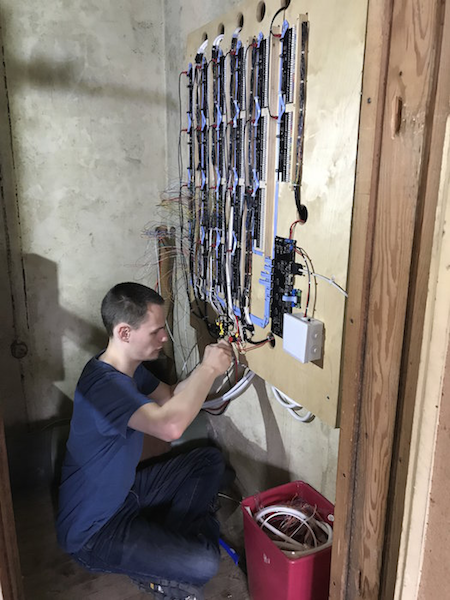

The new Switching System is fitted and wired in the organ chamber

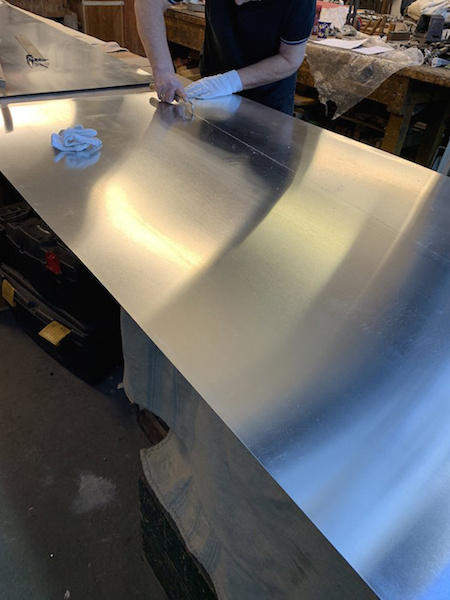

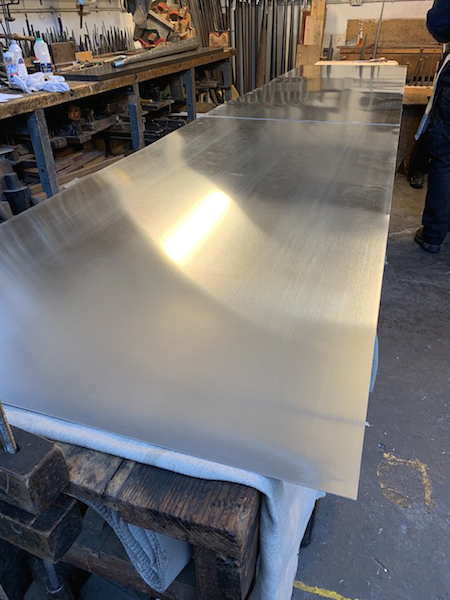

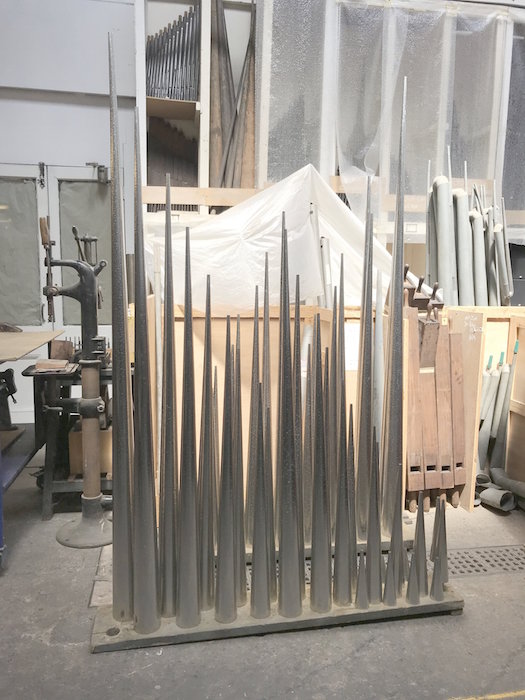

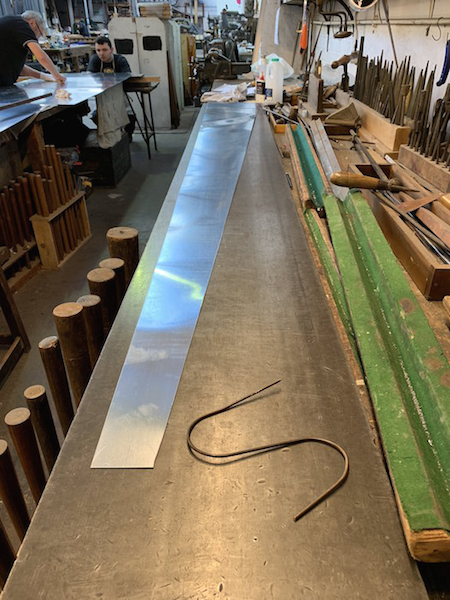

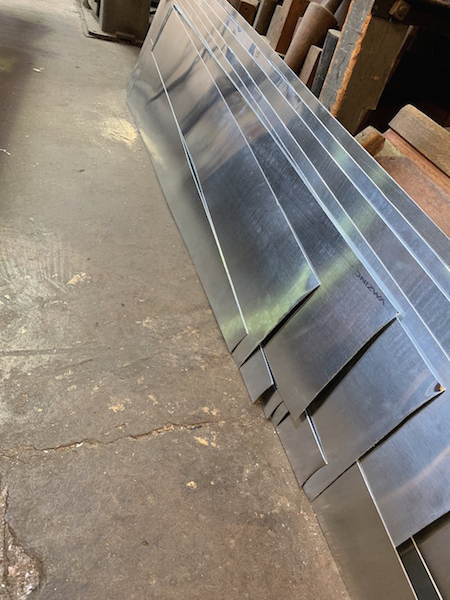

Zinc is marked and cut to make the new Trombone Resonators

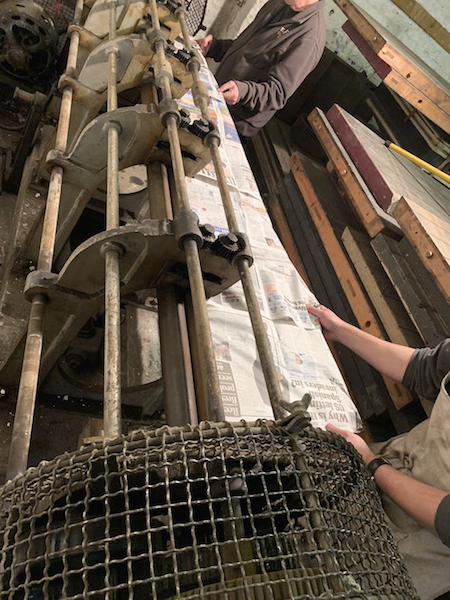

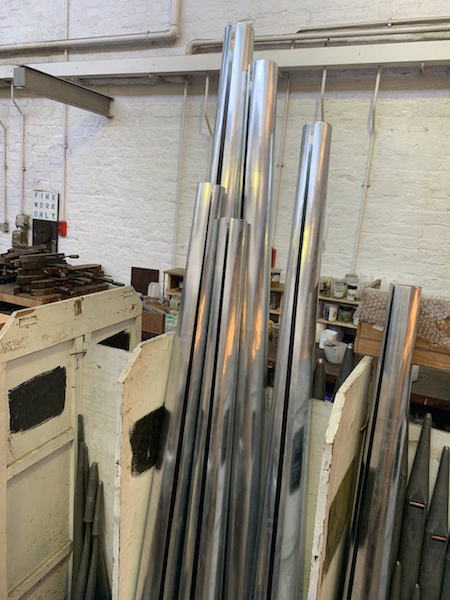

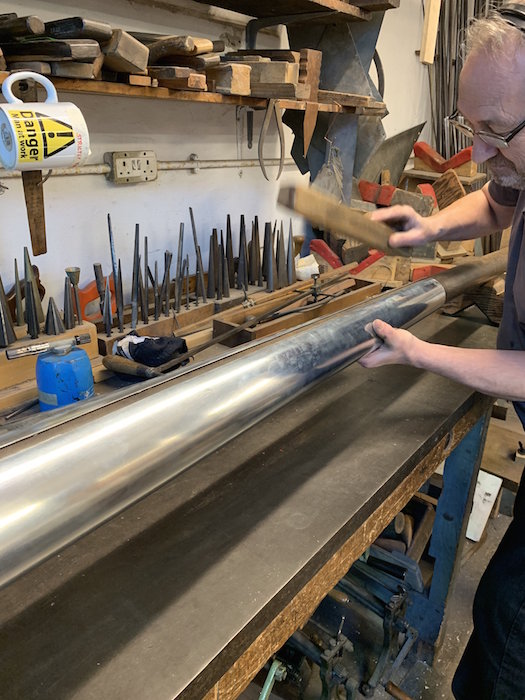

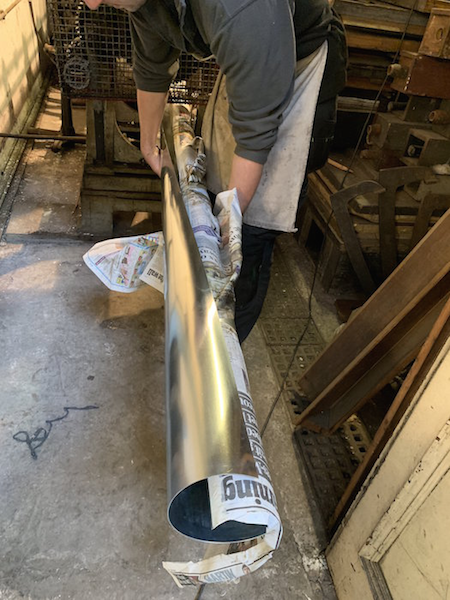

The Resonators are rolled using the large electric rolling machine

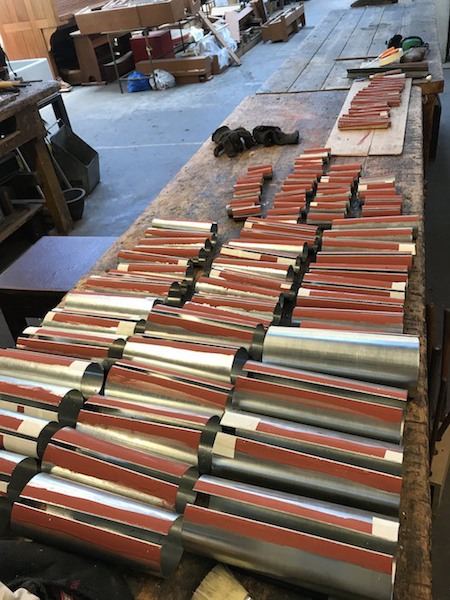

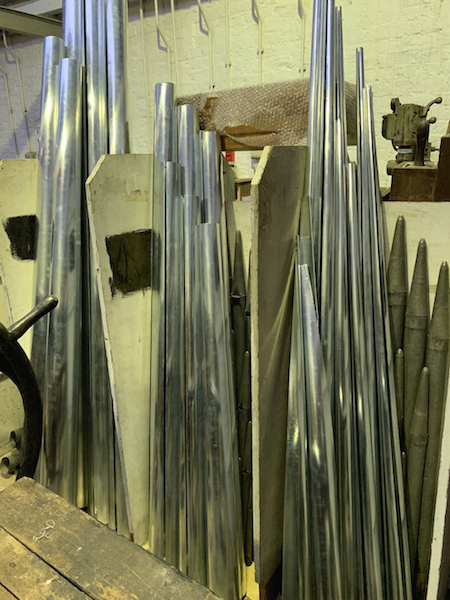

and are prepared for soldering
Stockings and Sockets are manufactured

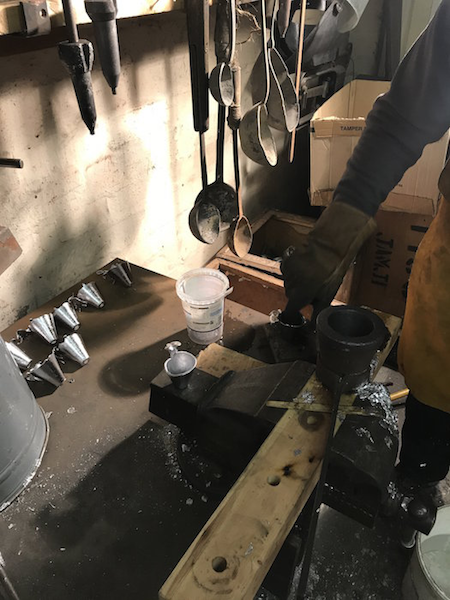

Tips for the sockets are cast into moulds
The Sockets with cast tips
The Resonators for the Tromba are made of Spotted Metal

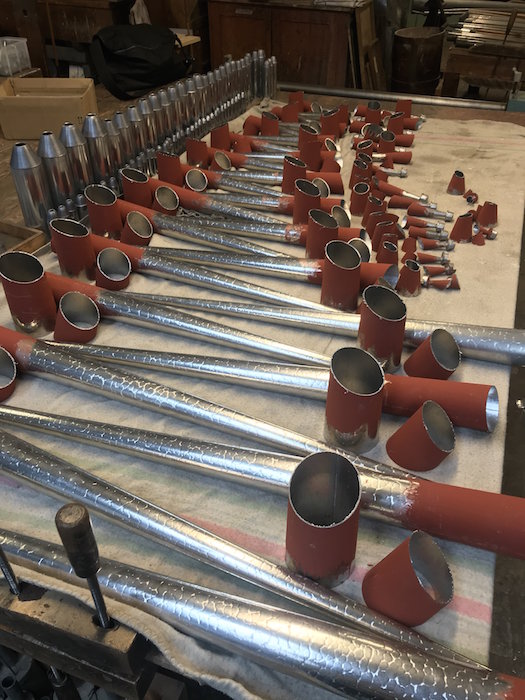

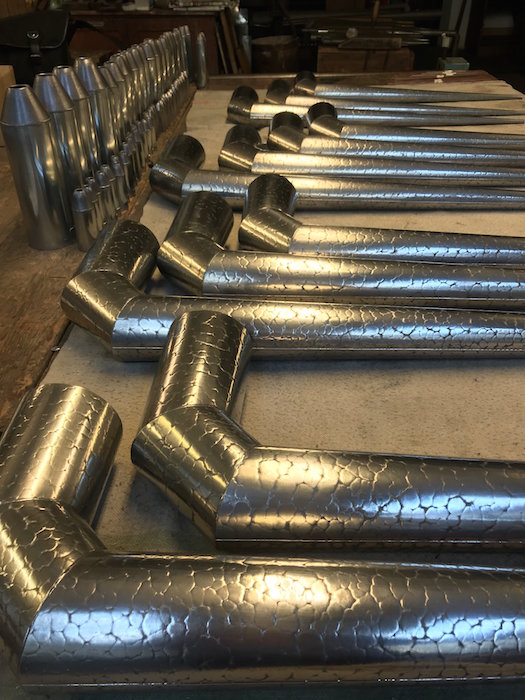

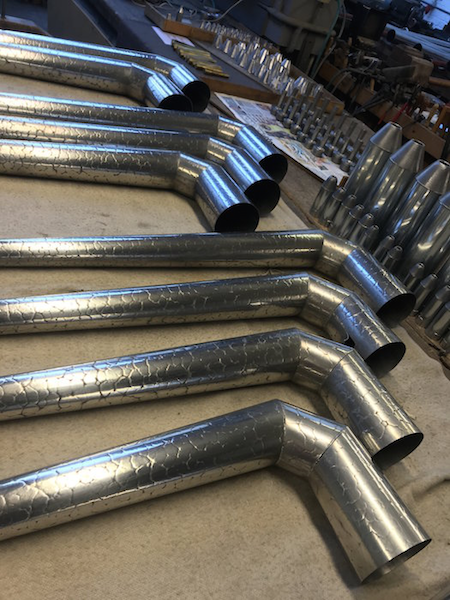

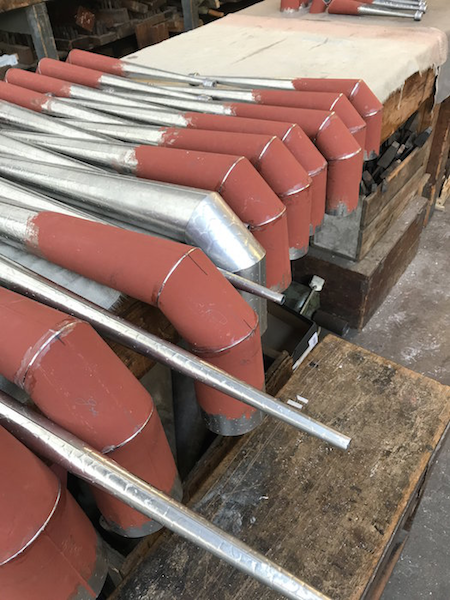

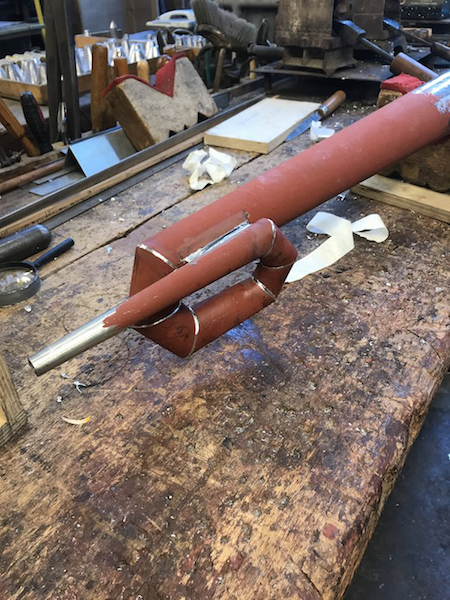

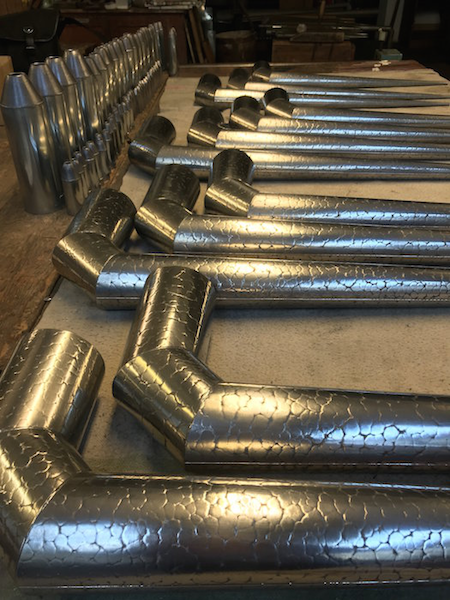

The Resonators are cut apart for knuckling and mitering
The Size is washed off

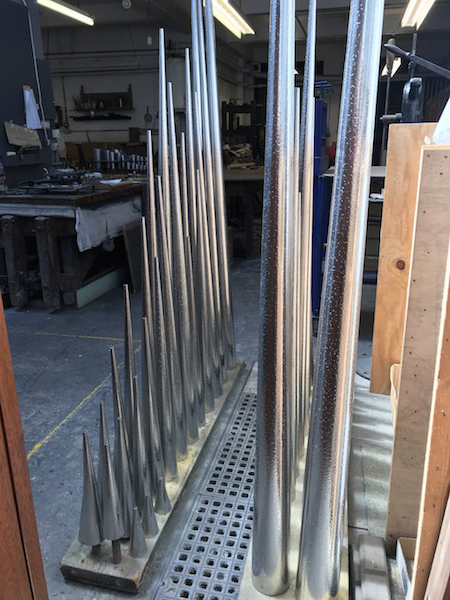

and the pipes are assembled ready for voicing

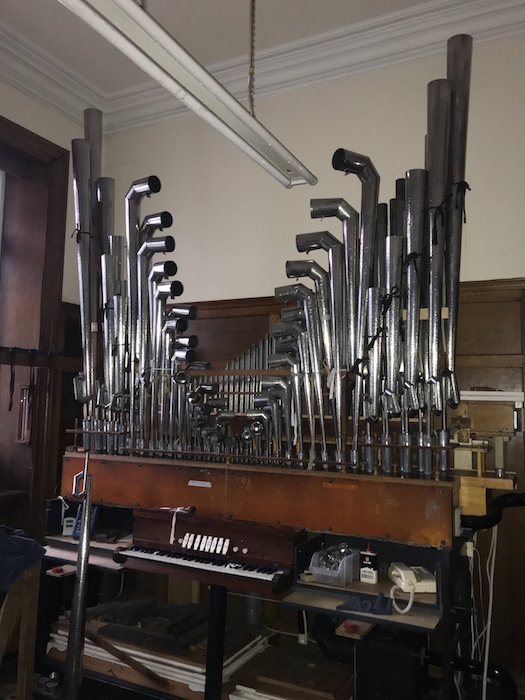

On the Voicing Machine

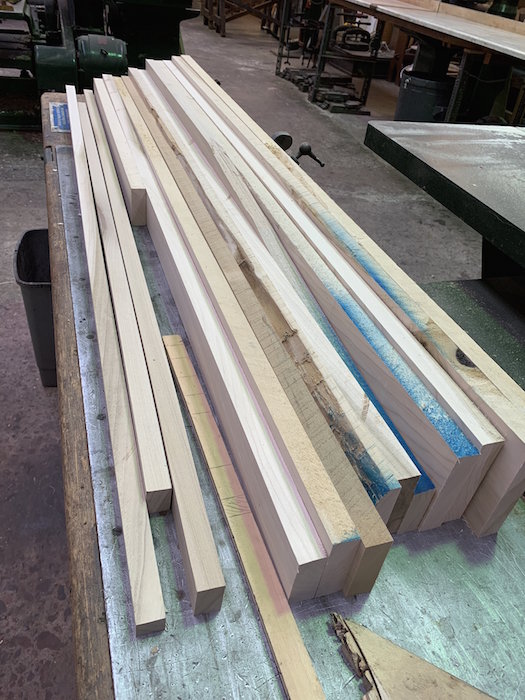

New Willis Membrane Pallet Action chests are manufactured
for the Tromba and Tombone
Upperboards
Membrane
punchings

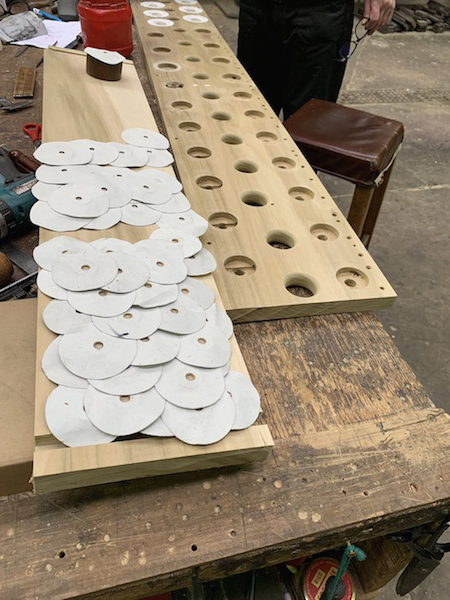

Membranes
& Pallets

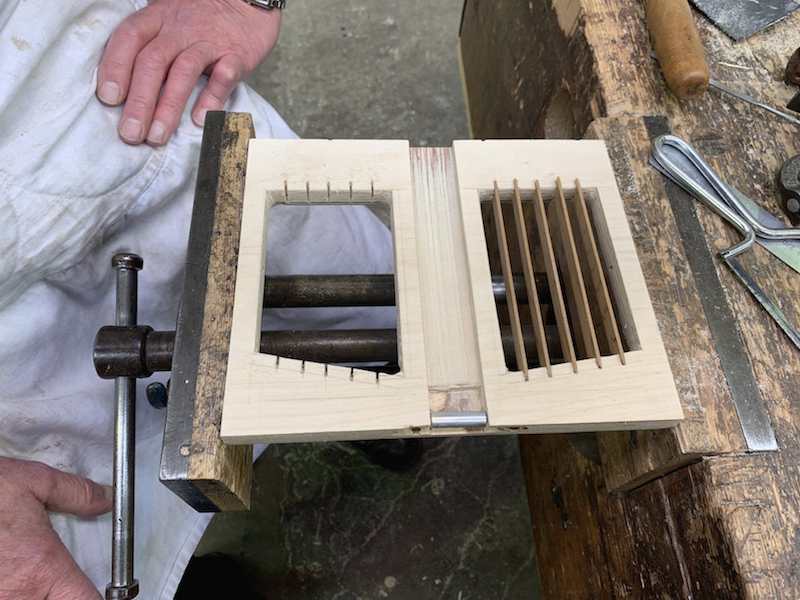

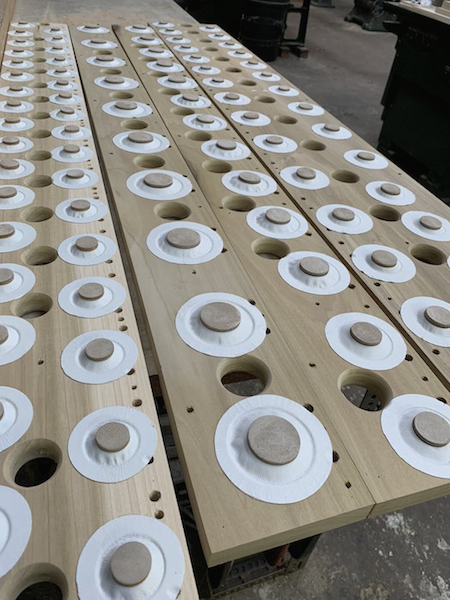

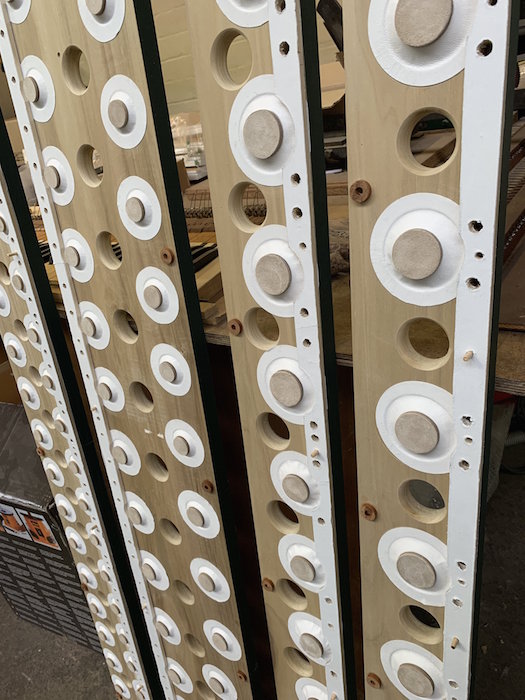

completed rails fitted with the internal springs

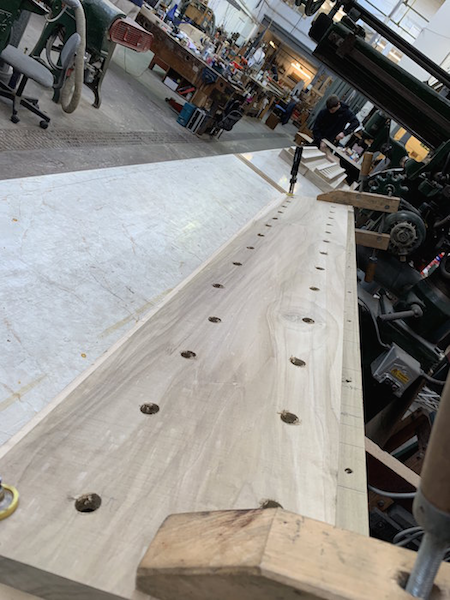

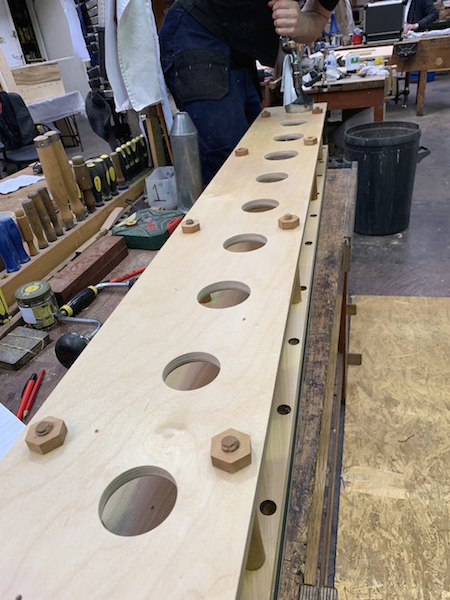

Rackboards and 'Racking In' with a conical Spoon Bit
Racked in
The pipes are installed
on the chests

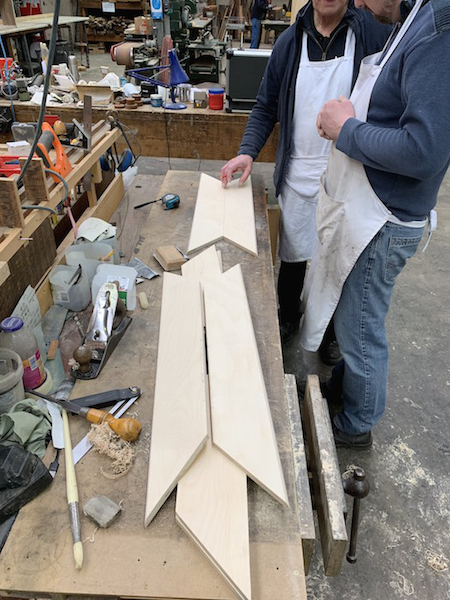

Flying Rackboards are made for the taller pipes
to ensure strength and stability

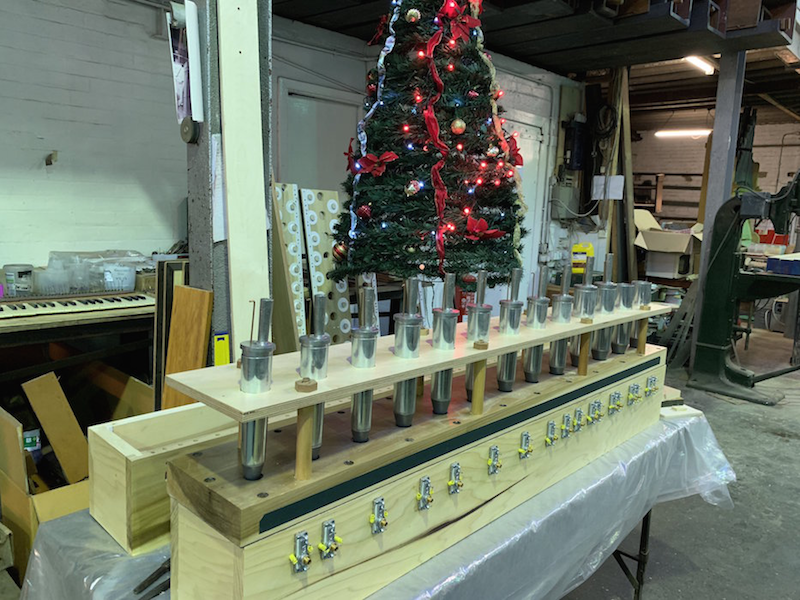

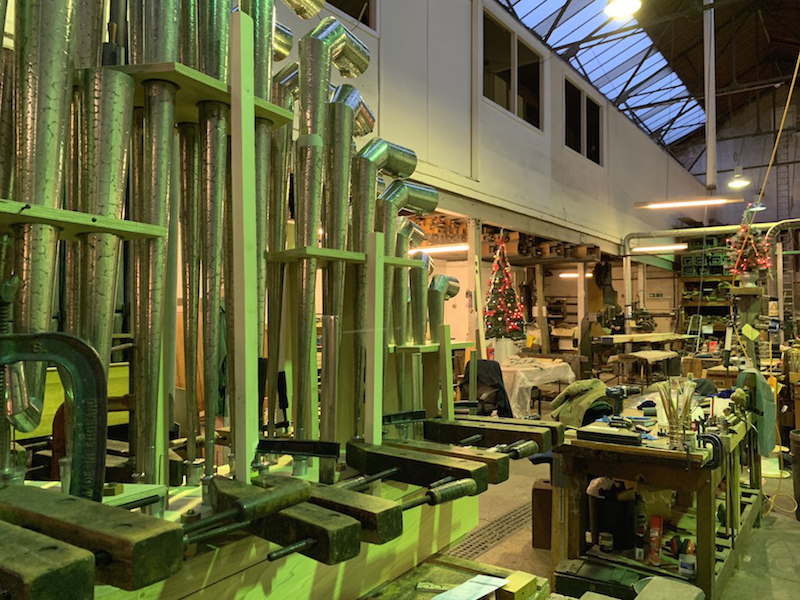

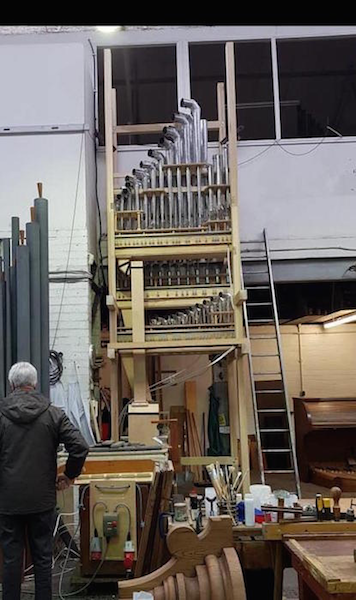

The Building Frame is built up and the whole rank
is then put on test in the factory

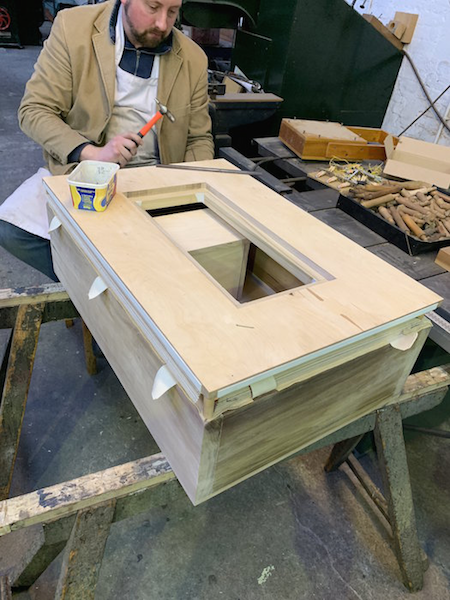

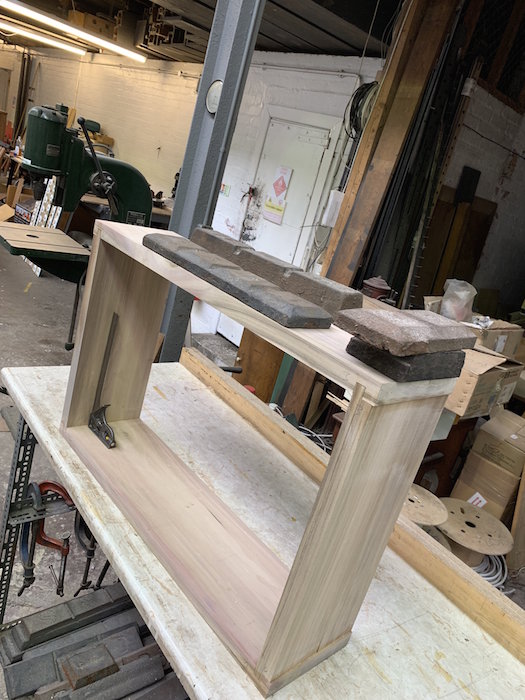

A new Reservoir is made for the reed
Making a Roller Blind
Grid for the internal
Wind Control

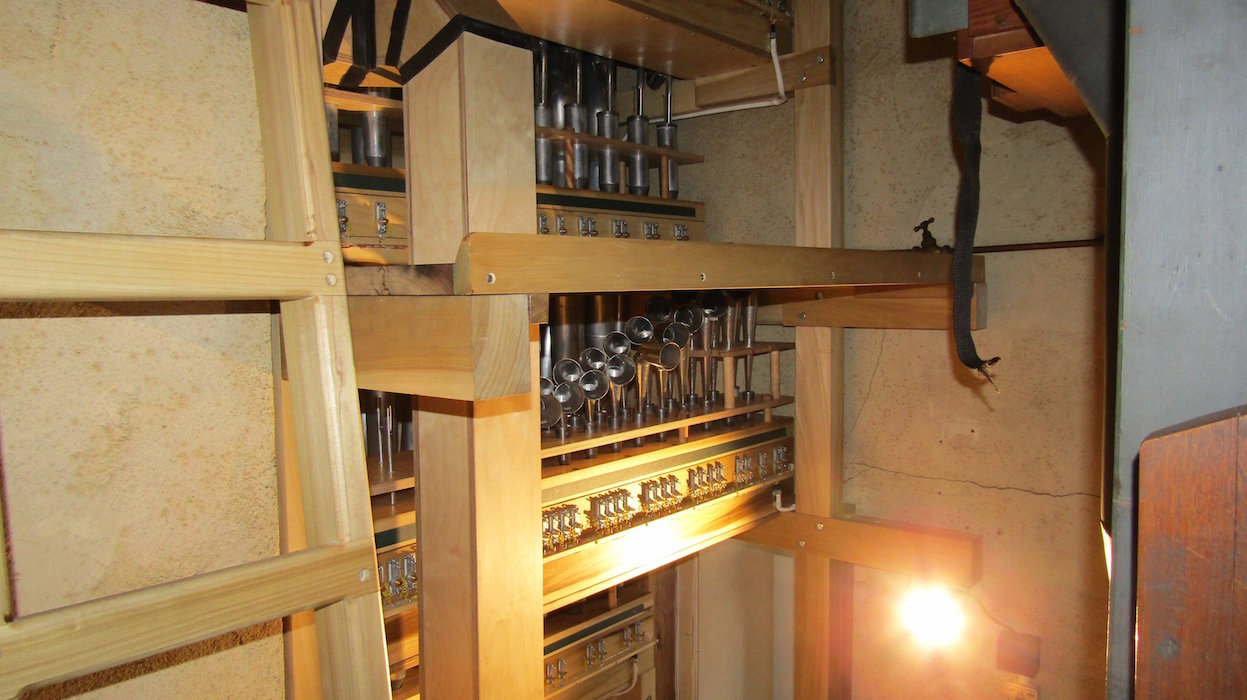

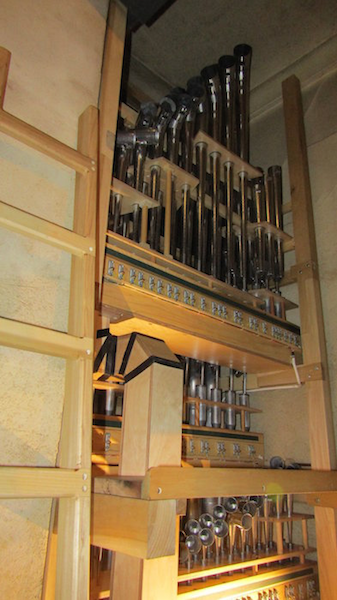

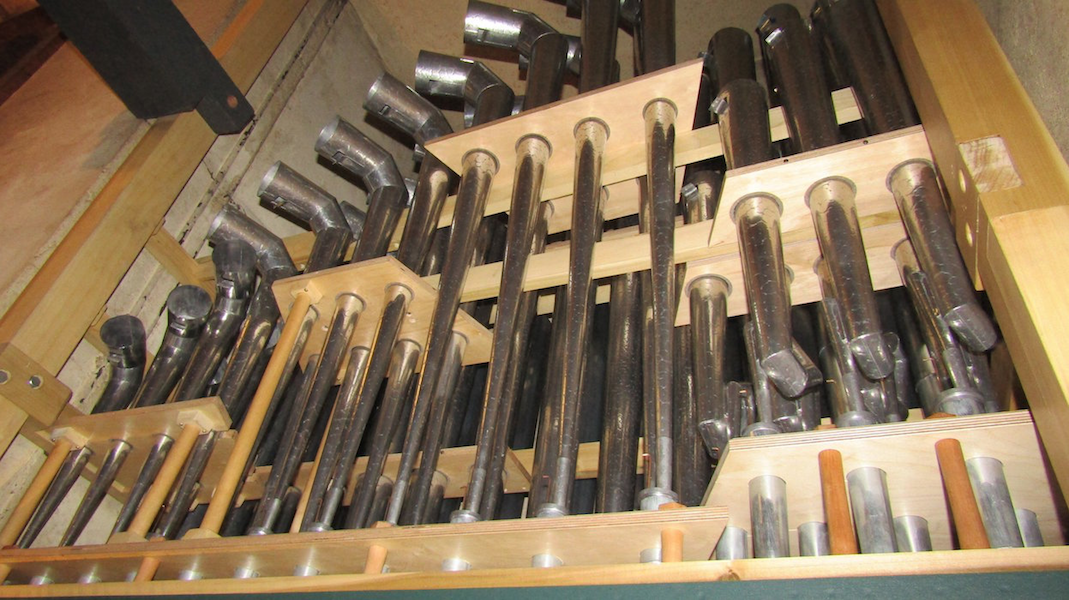

The Building Frame, Reservoir, Chests,
Winding & Pipes are installed in the organ

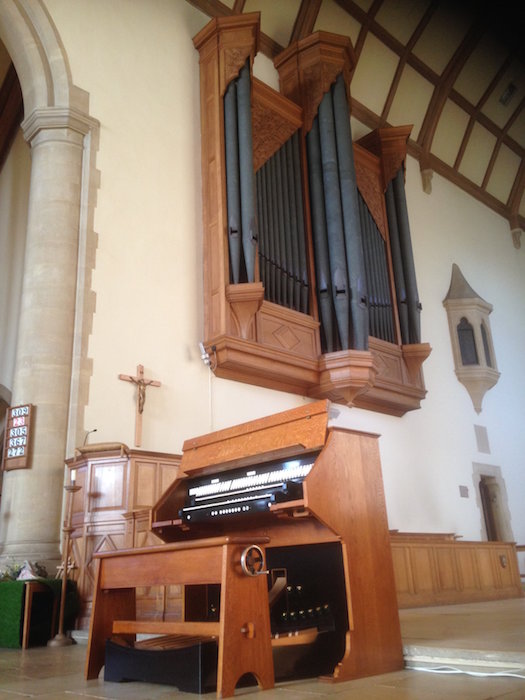

The refurbished Console is temporarily placed
in full view of the church for the re-dedication recital
